Proximity sensor

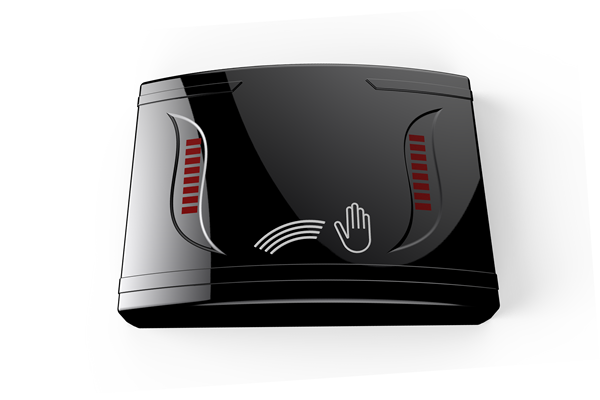

RDES-101 proximity sensor has aesthetic and uniqe design. It is very easy to install and use. Creates ceremony during trigger with LEDs on.
Sensing distance up to 20 cm adjustable and optional audio output can be switched off.
RDES-101 Technical Details
Product Name : proximity sensor
Product Code: RDES-101
Material: Polikarbon
Size: 103*75*30 mm
Connection Type: cable 5.08mm Terminal Connection
Color: Black
Technology: InfraRed
Transmitting Frequency : 38kHz
Proximity Distance : Max 20cm, Min 2cm ( Adjustable)
Operatting Voltage :12-36 V DC / 12-24 V AC (±%10)
Used Current: 24V DC Max 60mA
Contact Type: N0/NC
Maximum Contact Capacityi : 2A 120V AC / 2A 24V DC
