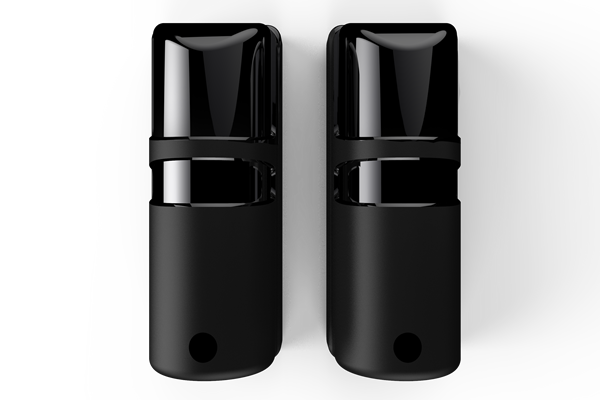

Garage Door Safety Photocell
RDGF -101 is a safety photocell designed for garage doors and barriers. is not affected by sunlight and outside influences. RDGF -101 has a 12 meter working distance . It is very easy to setup and use .
RDGF-101 Technical Details
Product Name : Garage Door Safety Photocell
Product Code: RDGF-101
Material : polycarbon
Size: 37*90*34 mm
Connection Type: cable 5.08mm Terminal Connection
Color: Black
Technology: InfraRed
Transmitting Frequency : 38kHz
Working Distance : in the Daylight 12m / in the Shadow 25m
Operatting Voltage: 12-36 V DC / 12-24 V AC (±%10)
Used Current: 24V DC Max 60mA
Contact Type : N0/NC
Maximum Contact Capacityi : 2A 120V AC / 2A 24V DC
